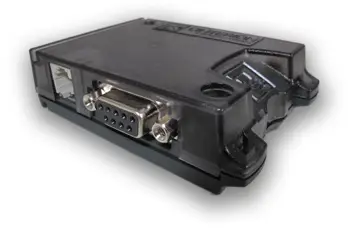

The Telit-Cinterion® ultra-compact BGS2T Terminal / Modem
is a simple and reliable plug-and-play Cellular communications device with either a Serial RS232 or RS485 interface. Both versions feature Quad-Band GSM/GPRS baseband, TCP/IP connectivity based on GPRS class 10 data transmission and very low power consumption.
Ideal for first time M2M implementers and small scale deployments, the BGS2 Terminal offers reliable, cost-effective, out-of-the-box M2M communications for a variety of industrial applications such as metering, security, transportation, remote monitoring and control and many more.
The slim design Modem Terminal shares the footprint of a credit card, and easily fits in almost every M2M application. To ensure a simple, reliable and efficient integration the ultra-compact design incorporates a highly flexible mounting concept.
General Features
- Quad-Band GSM (2G): 850, 900, 1800 and 1900 MHz
- GPRS class 10: DL: max. 85.6 kbps, UL: max. 42.8 kbps
- Power Supply: Input voltage range 8 – 30 V
Interfaces
- BGS2T-(RS232) - RS232 4-wire Serial Interface (up to 230Kbps)
- BGS2T-(RS485) - RS485 Serial Interface (up to 230Kbps)
- Plug-in power supply connector (6-pole Western jack)
- Antenna Connector: SMA (female)
- Power and operation LED indicators
Special Features
- Real time clock with alarm functionality
- Hardware watchdog
- Flexible mounting concept - DIN Rail, Screw Fixing, C-Rail, Cable Tie Locations.
