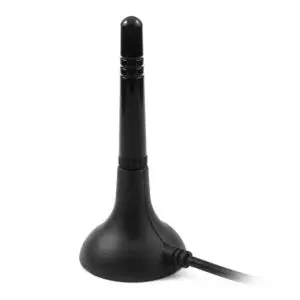

The 2J3024M Mag-Mouint antenna for GSM 2G/3G & 4G LTE applications is designed for mounting on horizonal metallic surfaces. This new antenna has been specifically designed for 4G LTE applications where fast and simple installation are requried at least cost.

Our standard versions available from stock include 3.0 meters of RG174 Coaxial cable terminated with an SMA-male, suitable for connection to all of our wireless products. Further options are available on request.

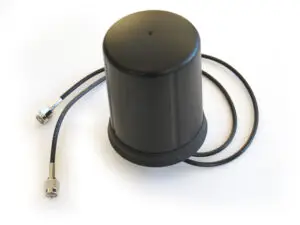

The 2J7724B 'Dome' style antenna for GSM 2G/3G & 4G MIMO applications is a high-performance design specifically for marginal signal conditions or where regional certifications require a higher efficiency design. The through-hole screw mounting offers several options for mounting & cable routing in body mount applications on a horizonal ground-plane. With compact dimensions the antenna is highly suitable for 4G LTE applications where either single or twin-element (Main + Diversity) is required.

A compact Ground Plane Dependent LTE antenna with small footprint. As well as IP69 it is IK09 rated for mechanical impacts. As well as meeting necessary efficiency ratings for approvals (e.g. in USA) the improved performance can help in UK deployments where reception is known to marginal.

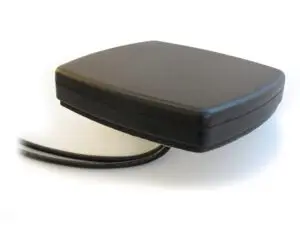

The 2J6024B 'Puck' style antenna for GSM 2G/3G & 4G MIMO applications is designed for through-hole body mounting on horizonal surfaces. The antenna is highly suitable for 4G LTE applications where either single or twin-element (Main + Diversity) is required. Despite compact dimensions the antenna does not requiring a ground plane making it very suitable for mounting on non-metallic surfaces.

This antenna is one of the most compact Ground Plane Independent LTE antennas - it's the same size as many 3G 'pucks' despite having twin 4G elements. It is highly suitable for both new and upgrading installations to 4G without a metallic ground-plane & where space is limited

Available with single or twin-elements. See product specification for further information and options.

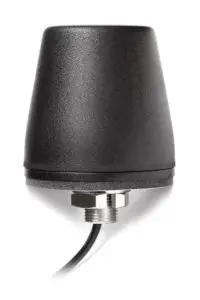

The 2J7624B 'Dome' style antenna for GSM 2G/3G & 4G LTE applications is designed for through-hole body mounting on horizonal surfaces. The antenna is highly suitable for cost-demanding 4G LTE applications. The single element design makes for a very compact size antenna whilst not requiring a ground plane, making it very suitable for mounting on non-metallic surfaces.

This antenna is our most compact Ground Plane Independent LTE design and is highly suitable for both new and upgrading applications to 4G LTE networks where no metallic ground-plane is available & space is limited.

See product specification for further information on options.

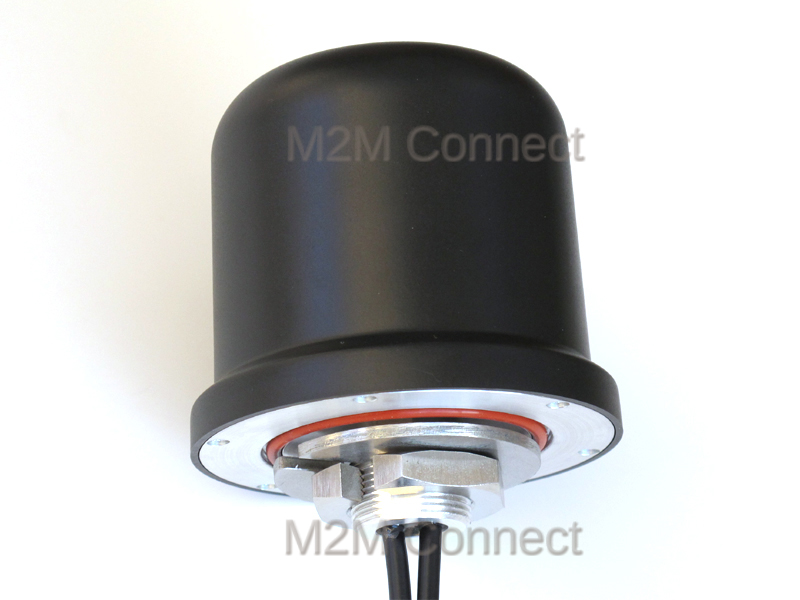

The 2J7024BA is a compact heavy duty 4G LTE antenna designed for wide range of industrial applications. It is intended for mounting on both internal and external horizontal surfaces.

The antenna housing is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69 standard for high pressure and hot water ingress and requires no additional ground plane. The mounting is made with specific anti-rotation mounting system.

See product specification for further information & other supply options.

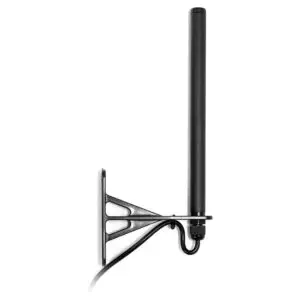

The 2J2102K ISM-Band Wall mount antenna is specifed for WiFi, BT, ZigBee and ISM applications. It is intended for mounting on both internal and external vertical surfaces.

The Dual-band, Omni-Directional design operates on 2.4GHz and 5.0 GHz frequencies and requires no additional ground plane.

The standard version is supplied with 5 meters of RG58 coaxial cable terminated with a reverse polarity SMA male connector.

See product specification for further information & other options.
